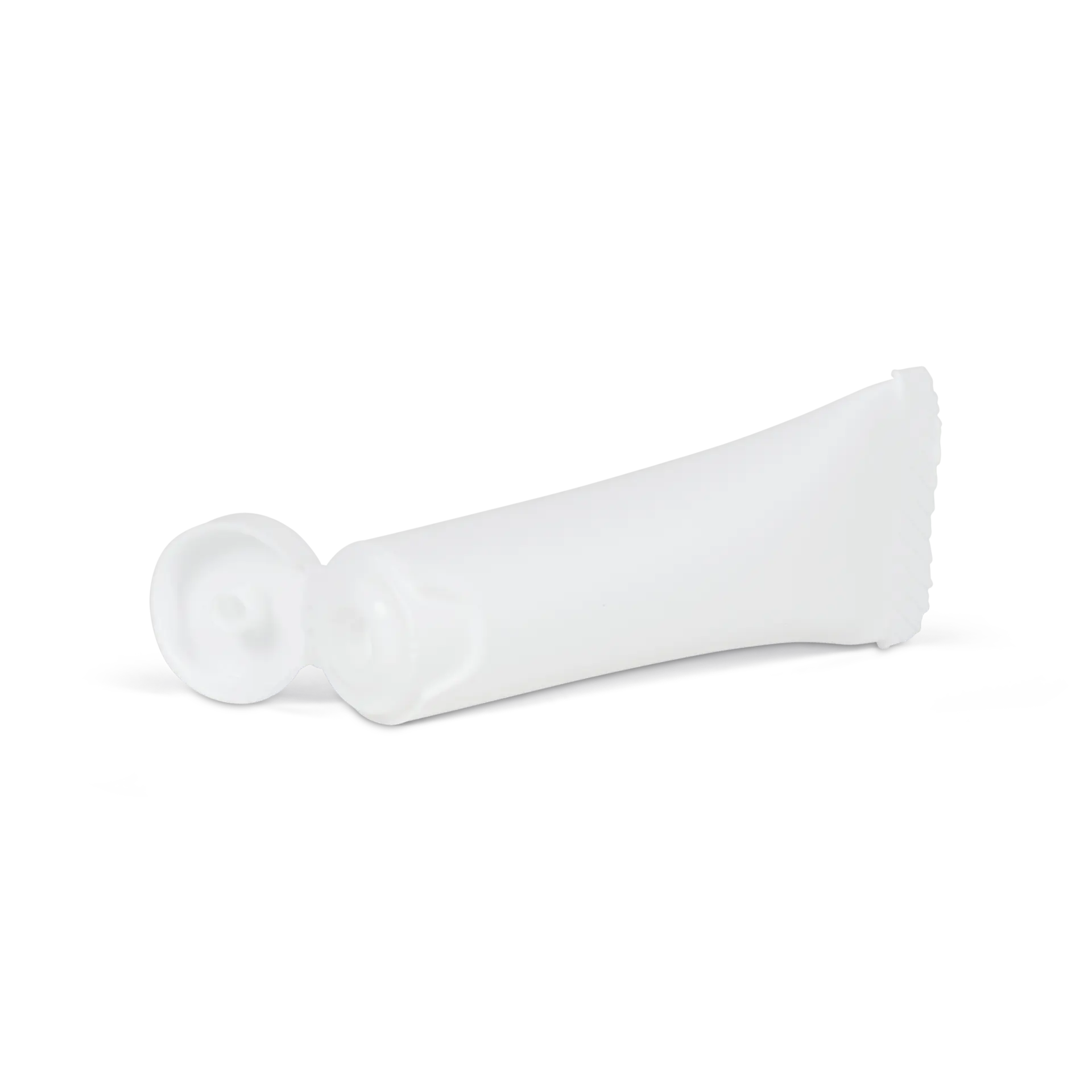

Integrated Flip-Top, Ø19 mm
Injection moulded tube with integrated flip-Top, a unique mono material solution.
Certifications & standards
Available in recyled materials
Available in recyled materials
General specifications
Flip-top
Product Variants
Available Sizes

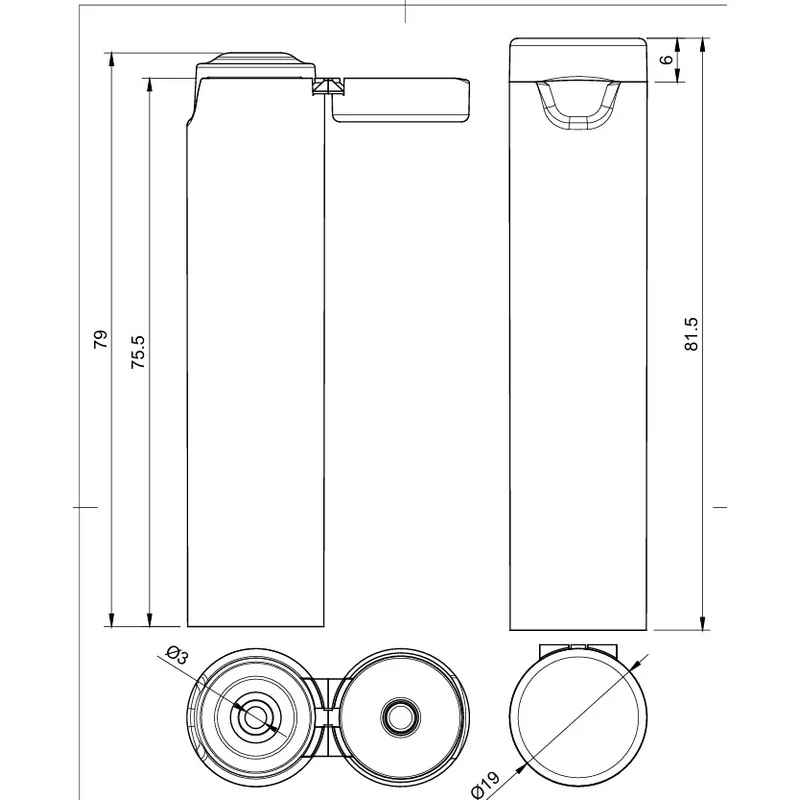

Technical drawing
Dimensions
Diameter:
19 mm
Length:
75 mm
Volume:
10 ml
Product features & benefits
This tube has an integrated cap, making 10 % material redution possible. Designed for circularity. Available with 10 % PCR.
This is the bigger version of the Intergrated Flip-Top, recommended filling volume is 10 ml.
Technical specificationsIntegrated Flip-Top, Ø19 mm, 10 ml
Category:
Tubes
Close type:
Flip-top
Diameter:
19 mm
Length:
75 mm
Volume:
10 ml
Volume range:
10–15 ml
Nominal volume:
10 ml
Print:
Offset
Number of Colours:
4
Packaging information
| Size | Packaging | Packaging type | Box per pallet | Pallet height |
|---|---|---|---|---|
| Integrated Flip-Top, Ø19 mm, 5 ml | Box | Pallet | 20 | 2 100 mm |
| Integrated Flip-Top, Ø19 mm, 10 ml | Box | Pallet | 20 | 2 100 mm |
