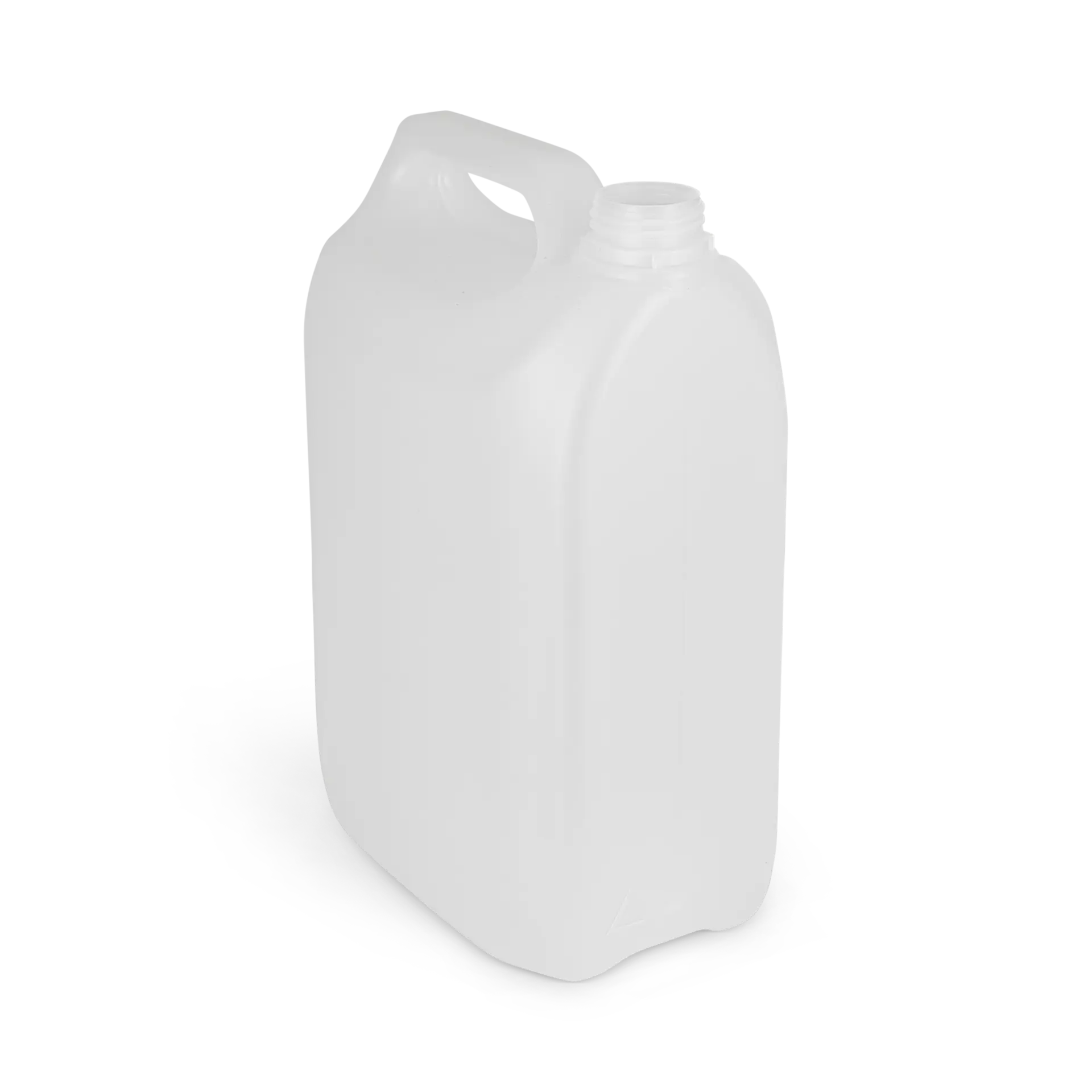

Ultimat UN 5L
5L UN approved canister with a 40 mm neck, compatible with tamper‑evident closures. Tactile warning mark. degree scale. Can be produced in custom colors with a minimum order of 5184 pcs. Contact us to ensure the correct UN classification for your filling.
Certifications & standards
UN-approved
Food Grade
ISO-Certified
Mass balance
General specifications
HDPE
Rectangular
Dimensions
Height:
290 mm
Width:
127 mm
Length:
194 mm
Weight:
165 g
Volume:
5 000 ml
Neck diameter:
40 mm
Product features & benefits
Ultimat UN is a canister series developed for professional and industrial applications where efficient handling, filling and packaging are required. The series is available in volumes from 3 to 5 liters and is suitable for chemical, food and cleaning products and more.
All sizes share the same base dimensions, enabling streamlined filling lines, improved pallet utilization and simplified transport and storage. This standardization supports efficient production processes and consistent logistics.
The canisters provide large, even surfaces suitable for labeling or printing and are designed to offer stability and secure handling during normal use.
All products in the Ultimat UN series are food approved. Color options are available for higher order volumes, and selected items can be configured with additional options upon request.
Technical specificationsUltimat UN 5L/40 165g uncoloured
Category:
Standard Canisters
Material:
HDPE
Shape:
Rectangular
Length:
194 mm
Width:
127 mm
Height:
290 mm
Weight:
165 g
Volume:
5 000 ml
Volume range:
3–5 l
Minimum order quantity:
288
Handle:
Rigid plastic handle
Colour:
Uncoloured
Neck diameter:
40 mm
Dergree Scale:
Yes
LM Approved:
Yes
Sight stripe:
No
Tactile:
Yes
Stock Item:
Yes
Suitable for
Paints & coatings
Pharma & healthcare
Food & beverages
Beauty & personal care
Animal & pet care
Cleaning & detergents
Petroleum, oils & lubricants
Building & construction
Packaging information
| Size | Packaging | Packaging type | Unit per bag | Bags per pallet | Unit per pallet |
|---|---|---|---|---|---|
| Ultimat UN 5L/40 165g uncoloured | Polybag | Pallet | 36 | 8 | 288 |
| Ultimat UN 5L/40 205g uncoloured | Polybag | Pallet | 36 | 8 | 288 |
| Ultimat UN 5L/40 235g uncoloured | Polybag | Pallet | 36 | 8 | 288 |
| Ultimat UN 5L/40 265g uncoloured | Polybag | Pallet | 36 | 8 | 288 |
| Ultimat UN 5L/40 165g white | Polybag | Pallet | 36 | 8 | 288 |
